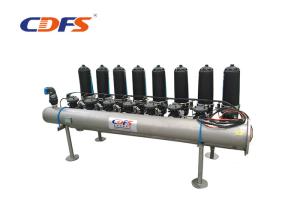

50m3 / H Industrial Automatic Disc Filter For Oil Filtering Equipment

Name: 50m3 H Industrial Automatic Disc Filter For Oil Filtering Equipment
Brand: CDFS
Price: 1 USD

Brand Name : CDFS

Model Number : DLLF

Certification : ISO90001,CE

Place of Origin : China(Mainland)

MOQ : 1SET

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2600SET/YEAR

Delivery Time : 10-15Days

Packaging Details : Wooden case

Product name : Automatic Disc Filter

Material : Plastic

Pipe Material : Plastic /Carbon steel/Stainless steel

Capacity : 20-2000m3/h

Application : Oil Filtering Equipment

Color : Black/blue

Pressure : 2-10bar

Precision : 4000-20um

Temperature : 85℃

Control optional : differential pressure/time/manual/PLC

Disc filter modules material : Nylon

Pressure gage material : Stainless steel

Power : 220V/50Hz

Contact Now

Automatic cleaning disc filter for water treatment

Automatic Disc Filter Description

Specification of DLLF-2-2

Working temperature:<85℃
Power:220V/50Hz
Flow: 50m3/h
Water in/out: 2 inch
Housing color:green/blue
Dimension:900*820*1150mm
Net Weight: 52KG Gross weight:96KG

Automatic Disc Filter Parameters tems

Items	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Automatic Disc Filter structure

50m3 / H Industrial Automatic Disc Filter For Oil Filtering Equipment

Automatic Disc Filter Parameters

Items	Materials
Disc filter modules	Nylon
Pipeline	Carbon steel/HDPE /Stainless steel
Pressure gage	Stainless steel
Auto backwash valve	Nylon/stainless steel
Electromagnetic valve	Brass/nylon
Air valve	Plastic
Controller cover	Plastic/Stainless steel

Design and selection of models
1. Water quality classification

A.: Water of good quality: city tap water, well water from stable aquifer.

B.: Water of general quality: cooled circulating water, surface water treated by sedimentation, and drained water treated by effective deposition and completely biological treatment.

C.: Water of relatively poor quality: groundwater from aquifer of poor quality, drained water treated by effective deposition but with poor biological treatment, and surface water with enormous microbes.

D. The worst quality: well water with rich iron and manganese elements, surface water affected by flooding and without sedimentation, and drained water without precipitation and biological treatment.

Different water qualities have different influences on the filter's operation period, so in general it is better to keep the system's backwash intervals no less than 1 hour.

Raw water quality	Good water quality			General water quality			Poor water quality			The worst quality
Filtration range	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm	200μm	100μm	50μm

Models	Flow(m3/h)			Flow(m3/h)			Flow(m3/h)			Flow(m3/h)
DLLF-2-2	≤38	≤30	≤22	≤29	≤22	≤18	≤21	≤15	≤13	≤13	≤10	≤8
DLLF-2-3	57	45	33	43	33	26	31	22	18	18	14	10
DLLF-2-4	76	60	44	57	44	35	41	30	24	25	19	14
DLLF-2-5	95	75	55	72	55	44	51	37	30	31	23	17

Packaging & Shipping

50m3 / H Industrial Automatic Disc Filter For Oil Filtering Equipment

Our Services

1. Our company provides maintenance for 1 year after delivery.

2. Alfter the goods are delivered, our company will track the products.

3. In addition to the after-sales service during the warranty period, the company is also

responsible for equipment maintenance after the warranty period.
